CNC toolholders system

designed to store tools for CNC machines compliant with the following standards: ISO, BT, SK, HSK and WILA punches and dies

System for tool holders for Jotkel CNC machines

CNC toolholders system CNC – functional and ergonomic workshop cabinets designed for safe storage, transport and use of tools compliant with the ISO, BT, SK, HSK standards, as well as dies and punches of press brakes with WILA clamping system.

Products offered within this system:
- large cabinet with pull-out compartments,
- one- and two-door cabinet,,
- tool rack,
- three types of tool trolleys,
- extension that can be mounted on standard trolleys, cabinets and workbenches

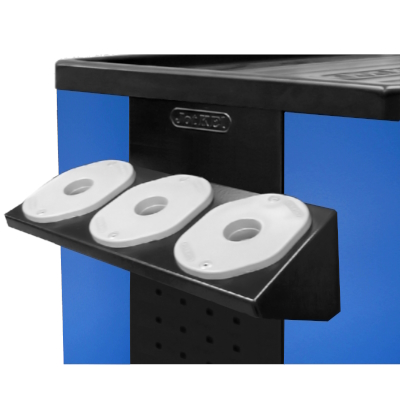

- shelf for mounting on pegboards or the side of a HWW05 workshop trolley


The cabinets, racks, trolleys and extensions are made up of modular elements which enable configuration according to the user's needs. They consist of typical support structures and shelves with organisers for toolholders.

The customer chooses a specific support structure and matching shelves.

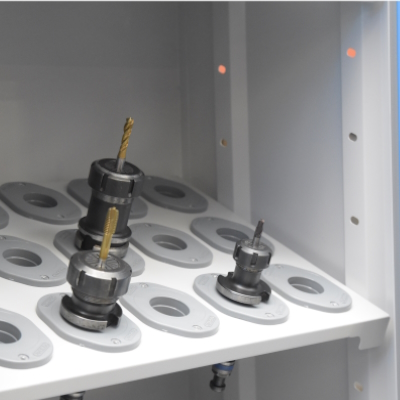

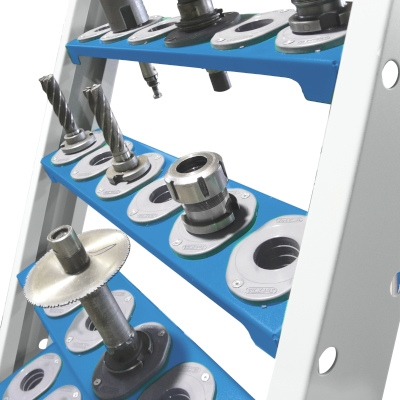

Shelves with organiser sockets in the ISO, BT, SK standards

Shelf for mounting tools to CNC machine tools marked with the ISO, BT, SK standard

- shelf structure made of sheet steel, powder coated,
- organiser sockets made of plastic,
- shape of sockets adapted to tools for CNC machines
compliant with the ISO, BT, SK; standard,
- sockets available in sizes:30, 40, 50;
- shelves are equipped with organiser sockets of the same
sizeas standard.

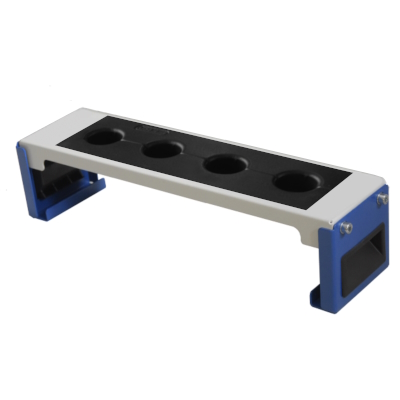

Shelves with organiser sockets in the HSK standard

Shelf for mounting tools to CNC machine tools marked with the HSK standard

- shelf structure made of sheet steel, powder coated,
- organiser strip with sockets, made of plastic,
- shape of sockets adapted to tools for CNC machines
compliant with the HSK standard,
- sockets available in sizes:63, 100,
- shelves are always equipped with organiser sockets of
the same size.



Shelves for bending brake stamps and dies - WILA fixing system

- galvanised sheet steel construction,
- safe and functional storage of complete or segmented tools.

Shelf for press brakes and punches with WILA mounting

Racks, trolleys and extensions are supplied in parts for self-assembly.

Each product is supplied with assembly instructions and all necessary fixing elements.

Single and double-door cabinets and cabinets with compartments are delivered assembled.

Superstructure for CNC toolholders - Construction 27044

Construction of the
27044 superstructure
for CNC toolholders
[example configuration for 15 sockets]

» See details
Rack for CNC toolholders - Construction 27042


Construction of the
27042 rack for CNC toolholders
[example configuration for 42 sockets]

» See details
Trolley for CNC toolholders - Construction 27043


Construction of the
27043 trolley for CNC toolholders
[example configuration for 36 sockets]

» See details
Trolley for CNC toolholders  - Construction 27040



Construction of the
27040 trolley for CNC toolholders
[example configuration for 60 sockets]

» See details
Trolley for CNC toolholders  - Construction 27041



Construction of the
27041 trolley for CNC toolholders
[example configuration for 36 sockets]

» See details

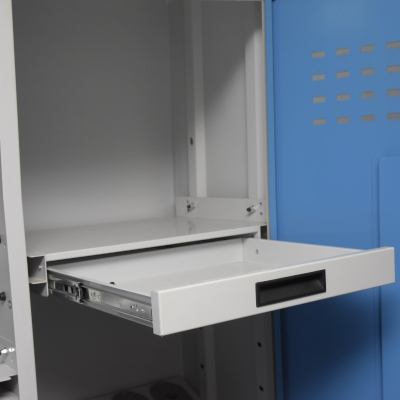

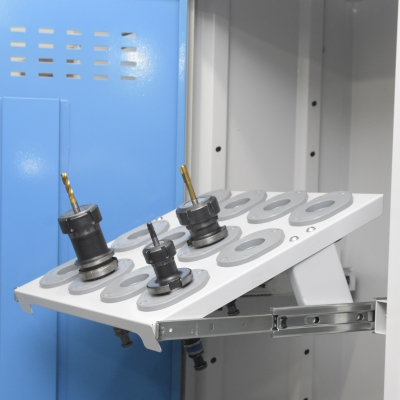

Cabinet with extendable compartments for CNC toolholders- Construction 27047

Construction of the
27047 cabinet
with extendable compartments
for CNC toolholders
[max configuration for 280 sockets]

» See details
 1-door cabinet for CNC toolholders  - Construction  27045

Construction of the
27045 1-door cabinet
for CNC toolholders
[example configuration for 60 sockets]

» See details
2-door cabinet for CNC toolholders - Construction 27046

Construction of the
27046 2-door cabinet
for CNC toolholders
example configuration for 120 sockets]

» See details

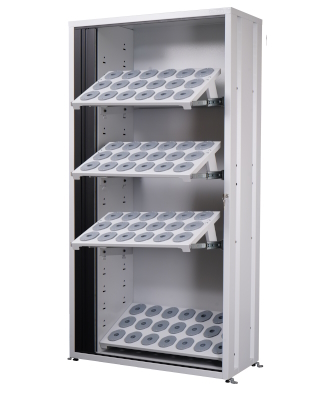

Roller shutter cabinet for CNC tool holders Construction 26301 - sample configuration

Construction of the
26301 roller shutter cabinet
for CNC toolholders
[example configuration for 54 sockets]

» See details
