H-SYSTEM workshop cabinets

HSW04 (650 x 1030 x 600) i HSW05 (1239 x 1030 x 600)

Workshop cabinets from the HSW04 and HSW05 series are basic equipment for workshops and assembly stations. They ensure safe and orderly tool storage. They can also serve as a stable worktop. A wide range of products allows you to select a cabinet to suit your individual needs.

HSW04 and HSW05 workshop cabinets – example configurations - click the picture to see a larger image

HSW04 Cabinets with superstructure - sample configuration

HSW05 Cabinets with superstructure - sample configuration

» go to products HSW04

» go to products HSW05

Product description:

The upper surface of the cabinet is fitted as standard with a plastic cover with raised edges to prevent small objects from falling.
Optionally, worktop made of 15 mm thick hardwood plywood can be mounted: painted, covered with oil-resistant patterned, riffled rubber, oil-resistant smooth rubber, galvanised sheet steel, stainless sheet steel or PVC lining.
Perforations on the sides of the cabinet for attaching accessories (tool hooks, drop-down shelf, raised edge shelf, document pocket, paper towel holder, etc.).
Cabinets can be fitted with superstructures with perforated boards for hanging tools and containers for small parts.
Standard cabinets equipped with feet for easy levelling and fixing to the floor.
Drawer locking:
standard - central lock - locking all at once.
optional - central locking system for opening a single drawer; another drawer can only be pulled out after the previous one has been closed.
The system ensures safety in use, preventing the centre of gravity from shifting and tipping the entire cabinet (option at extra charge).
Each locker with drawers provided with one small item holder and plastic organiser free of charge. Drawer divider sets, damping mats are also available for an extra charge.

HSW04 workshop cabinet - one of the most popular configurations

HSW05 workshop cabinet - one of the most popular configurations

overall dimensions of HSW04 workshop cabinets
without superstructure - without perforated panel
(W x H x D):
650 x 1030 x 600 [mm]

overall dimensions of HSW05 workshop cabinets
without superstructure - without perforated panel
(W x H x D):
1239 x 1030 x 600 [mm]

Parameters:

body: made of 1 mm sheet steel, powder-coated,
drawers: 0.8 mm thick sheet steel, drawer slots made of galvanised sheet steel,
drawers mounted on ball bearing runners, extension (90%), maximum load: 70 kg
maximum load on the cabinets: 400 kg,
maximum load on the worktop:
- HSW04 cabinets: 100 kg,
- HSW05 cabinets: 150 kg.

Two types of locking to choose from:

New drawer handles

Silver strips

(1) standard central locking system for all drawers,
(2) Optional central locking system for opening a single drawer – another drawer can only be pulled out after the previous one has been closed. The system ensures safety in use, preventing the centre of gravity from shifting and tipping the entire cabinet (option at extra charge).

large drawer extension for the drawers of the
for quick and convenient access
to tools used during work

internal dimensions - usable drawer size
(W x H x D):
drawer 60: 530 x 46 x 445 [mm]
drawer 120: 530 x 106 x 445 [mm]
drawer 180: 530 x 166 x 445 [mm]
drawer 240: 530 x 226 x 445 [mm]

perforated panel of HSW04 workshop cabinet

Perforations on the sides
of the cabinet
for attaching accessories.

The upper surface of the cabinet is fitted as standard with a plastic cover with raised edges to prevent small objects from falling.
Optionally, worktop made of 30 mm thick hardwood plywood covered with oil-resistant patterned, riffled, riffled rubber.

HSW04 cabinet with ABS cover

sHSW05 cabinet with ABS cover

HSW04 cabinet with plywood top covered with, riffled, riffled rubber

HSW04 cabinet with plywood top
covered with patterned, riffled rubber

HSW05 cabinet with plywood top
covered with patterned, riffled rubber

Drawer and locker additional components

Cat. No.	Low drawer divider
20670	drawer heights 60, 120, 180, 240 [mm] dividers usable height: 42 mm

Cat. No.	High drawer divider
20671	drawer heights 120, 180, 240 [mm] dividers usable height: 100 mm

Toolbox for small items for drawers of cabinets

Cat. No.	Organizer
20648	organizer for drawers made of plastic

Cat. No.	Toolbox
20649	toolbox - small item holder for HWW04 workshop trolley drawers made of plastic

Cat. No.	Dampening mat for drawers
20478	mat made of oil-resistant smooth rubber, th. 1.5 mm width 530 mm

Cat. No.	Shelf
20631	dimensions (W x H x D): 560 x 25 x 540 mm optionally, the locker can be equipped with more shelves (standard – one shelf)

Perforated panels for HSW04 and HSW05 workshop cabinets

Perforated panel for HSW04 workshop cabinets, Cat. No. 22283

Cat. No.	Perforated panel for HSW04 workshop cabinets
22283	2 perforated strips 112 mm long 2 perforated boards with dimensions (W x H): 602 x 480 [mm]. Possibility to mount wire hangers, hanging containers, shelves for hanging containers, galvanised shelves.

Perforated panel for HSW05 workshop cabinets, Cat. No. 22284

Cat. No.	Perforated panel for HSW05 workshop cabinets
22284	3 perforated strips 112 mm long, 4 perforated boards with dimensions (W x H): 602 x 480 [mm], Possibility to mount wire hangers, hanging containers, shelves for hanging containers, galvanised shelves.

Lighting modules with LED lamps for HSW04 and HSW05 workshop cabinets

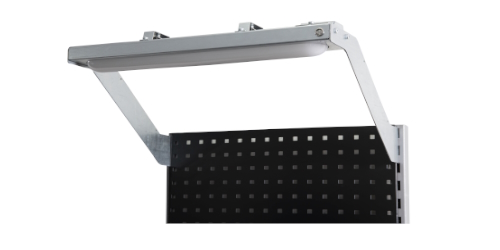

Lighting module with LED lamp for HSW04 workshop cabinet, Cat. No. 23925

Cat. No.	Lighting module with LED lamp for HSW04 workshop cabinet
23925	guarantees good lighting in the workplace made of galvanized sheet, which increases durability and resistance for mechanical damage the ability to adjust the height of the module suspension equipment elements: LED lamp (color 4000 K, stream 2100 lm, power 20 W), lamp mount, screw elements, consoles, switch lamp dimensions: [debt. x width] 1460 mm x 111 mm

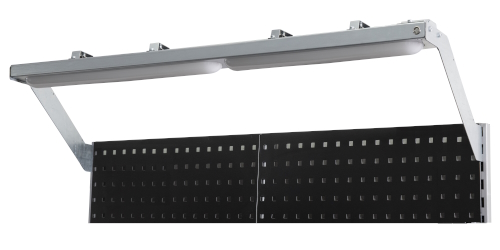

Lighting module with LED lamp for HSW05 workshop cabinet, Cat. No. 23926

Cat. No.	Lighting module with LED lamps for HSW05 workshop cabinet
23926	guarantees good lighting in the workplace made of galvanized sheet, which increases durability and resistance for mechanical damage the ability to adjust the height of the module suspension equipment elements: LED lamp (color 4000 K, flux 4200 lm, power 40W), lamp mount, screw elements, consoles, switch lamp dimensions: [debt. x width] 1460 mm x 111 mm

Accessories for HSW04 cabinets:

» go to accessories for HSW04 cabinets:

Accessories for HSW05 cabinets:

» go to accessories for HSW05 cabinets:

Standard colours (colour specification according to RAL)

Cabinets structures
and Perforated panels

Drawer fronts, cabinet doors,
perforation on the side walls

RAL7016

RAL 5005

RAL 3011

RAL 7035
